Deep Cycle Battery Replacement
Model No. RBM 25-200LP4
This is a direct battery replacement module for the SMS SGPC-2400 Systems.
With this replacement RBM 25-200LP4 simplifies and upgrades all SGPC-2400’s from the old technology AGM batteries, with a direct drop in module with built in forklift pockets.
Everything needed for this battery replacement is included and comes pre-wired for a simple installation.
Call now for a Free Quote: 1 (800)-771-5028
Drop-In Replacement for AGM Batteries
High-Capacity, Space-Saving Design
Built-In 200A Battery Management System (BMS)
Rugged & Safe Construction
8,000 charge cycles at 80% depth of discharge

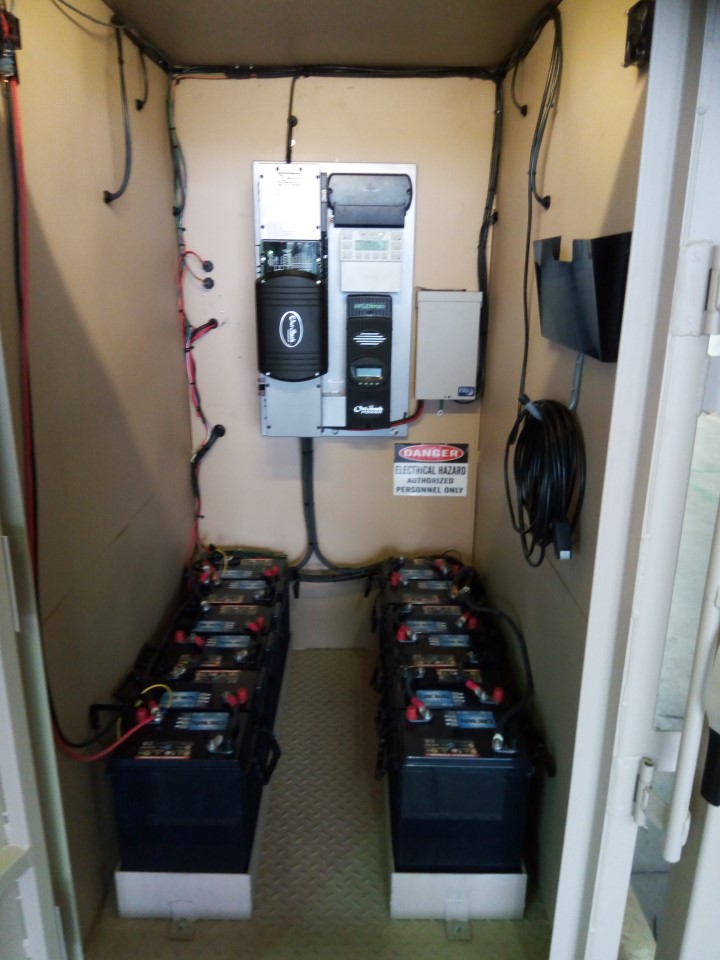

BEFORE

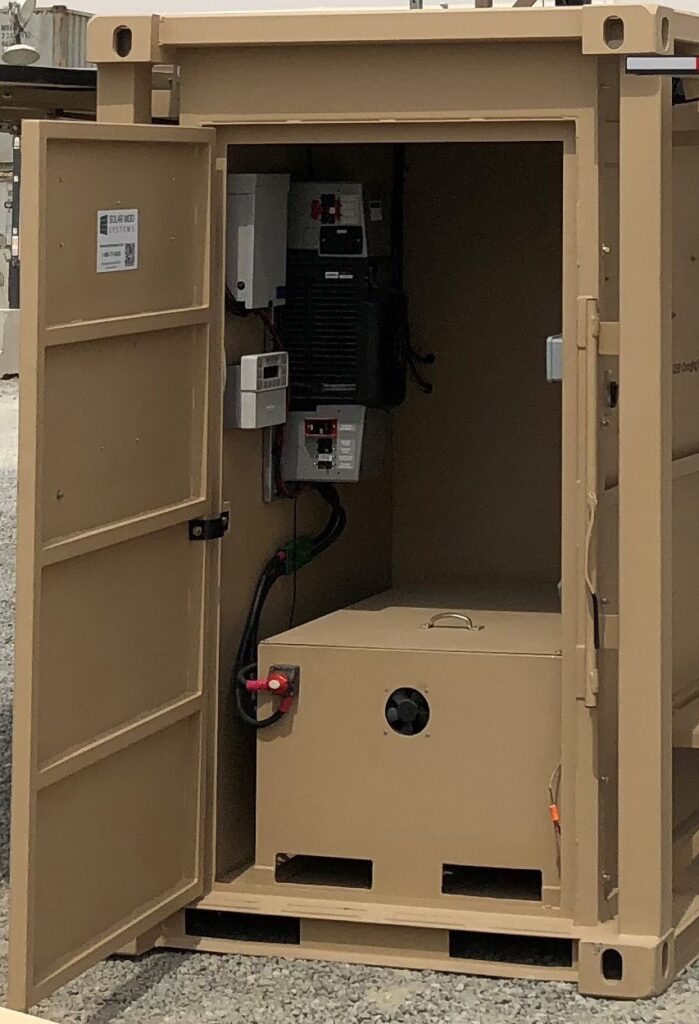

AFTER
RBM 25-200LP4 SPECIFICATIONS:
- Rated Voltage 25.6V
- Charging Voltage 28.8V
- Rated Capacity 800Ah
- Usable Capacity 800Ah
- Energy 20.48kWh
- Max. Continuous Load Power 5120W
- Max. Continuous Discharge Current 400A
- BMS Battery Management System 200A
- Dimensions 45”x22”x18” LxWxH
- Weight 440Lbs
- Number of Cycles 8000+ @80% DOD
FEATURES
- Grade A EV Class Cells
- 4000-15000 Cycles depending on DOD
- UL, FCC, Non-Noisy, Non-Vibration
- No Toxic Exhaust Fumes
- Over-Charge Protection
- Over-Discharge Protection
- Over-Current Protection
- Short Circuit Protection
- Hi-Temp Protection
